Adjustable Joist Support AJH45G (AUS/NZ)
Suits 45mm wide Joists (Australia/NZ) PLEASE NOTE: Bolts,Nuts,Washers & Masonry bolts are NOT INCLUDED and must be purchased separately from your Merchant/Hardware Store.
Box of 24
$159.00 incl GST
Small Box of 8
$64.00 incl GST
Freight costs apply for orders under certain dollar value. For further information please go to Shipping Information tab on the Online Store home page.
For New Zealand enquiries please contact One Stop Decking Shop P 64 (0)384 8365 E sales@onestopdeckshop.co.nz
---------------------------------------------------------------------------------------------------
Adjustable Joist Support (AJH45G) Information
As many houses these days are built on concrete slabs, there is often a shortage of height available to build a regular decking substructure of stumps, bearers and joists etc. Indeed, many houses have a slab for a patio area set down only approx 100mm below the height of the main housing slab. Fixing timber battens directly to concrete slabs is regarded as a poor building practice due the moisture uptake into the batten which will rot out the batten way before its normal lifespan. This scenario has made it very difficult for people to enjoy the relaxed lifestyle of having a timber deck at their doorstep.
The clever people from KlevaKlip have released the Adjustable Joist Support . This product, the only one of its type on the market, not only lifts the joists off the concrete, but allows you to adjust the "top of joist height" from 86mm (using 60mm length bolts + 70 x 45mm joists) to 170mm (using 120mm length bolts + 90 x 45mm joists).
The KlevaKlip
Adjustable Joist Support is Patented product in Australia & USA. It is simple to install (I
nstallation video and PDF instructions can be found at https://www.klevaklip.com.au/Joist-Supports-install-info ) and can be used with suitably treated timber joists with a width of 45mm, and minimum height of 70mm.
Note: Hardwood joists should be screwed to the joist hanger rather than nailed.

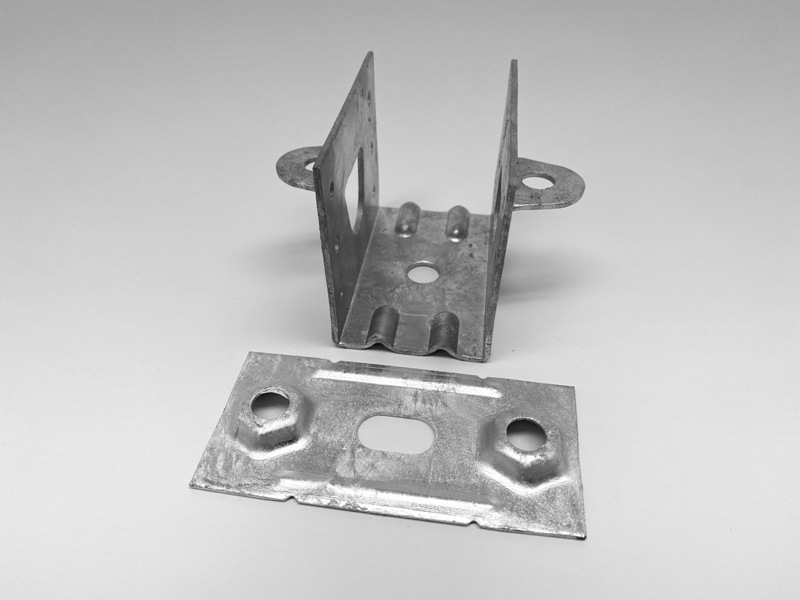

Please note: - the Adjustable Joist Supports come in standard boxes of 24 units - each unit being a Joist Support + a Base Plate. Bolts, nuts, washers and dynabolts are standard sizes and must be purchased separately from your hardware store

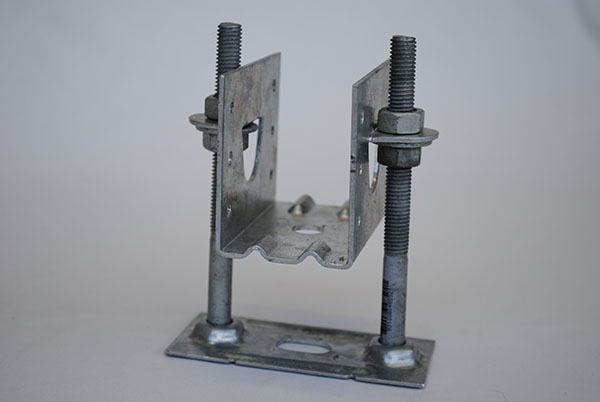

360° view Adjustable Joist Support Assembled
